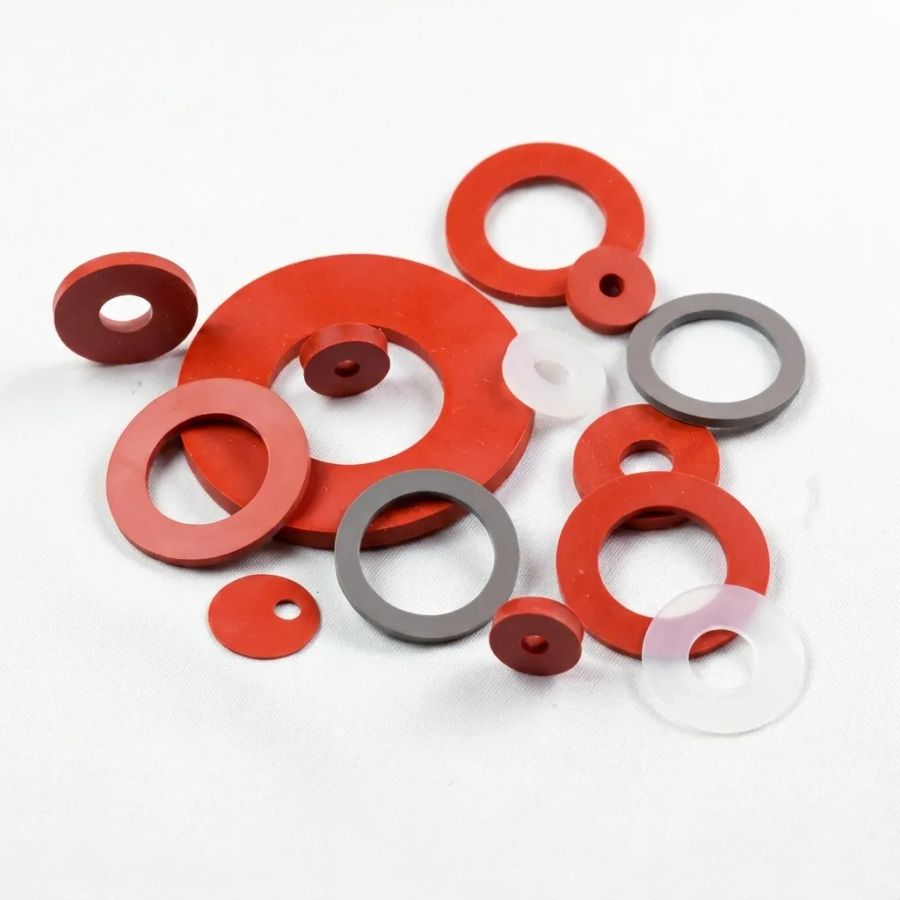

Silicone Rubber Washers
Silicone rubber washers handle extreme temperatures, food and medical contact, and applications where the washer must remain flexible across a wide thermal range. Cannon Gasket die-cuts custom silicone washers in FDA, medical, and industrial grades, with Class 10,000 clean room production when contamination control is required. Available in commercial, high-grade, FDA and medical, conductive, extreme-temperature, and fiberglass-reinforced grades.
- Durometer
- 10A to 90A
- Highlight
- Widest temperature range
Request a quote for Silicone rubber washers.
Properties of Silicone rubber washers
Cannon Gasket cuts Silicone rubber washers to your specifications in durometers ranging from 10A to 90A Shore hardness. Silicone exhibits resistance to Ozone, UV, weathering and water.
Silicone tolerances and customization
Standard dimensional tolerances on Silicone rubber washers land around ±0.010" to ±0.015" on OD and ID, depending on material durometer and thickness. Tighter tolerances are available on selected grades. Cannon Gasket cuts Silicone to custom profiles in-house and matches lead times to your production volume. PSA backing, pad printing, custom packaging, and kitting are all on the menu when you need them.
How Silicone Performs in Washer Applications
- Retains compression and flexibility across the full range of temps - FDA-approved and medical-grade compounds available. - Good resistance to ozone, UV, weather, and polar fluids. - Biocompatible grades available
Common Washer Applications
Food and beverage equipment sealing washers, medical device assembly, pharmaceutical equipment, cryogenic test rigs, oven and HVAC service, and high-temperature electrical insulation washers.
When Another Material Is the Better Specification
For oil or fuel contact, Fluorosilicone or Viton. For abrasion under wear loads, polyurethane.
Manufacturing Methods
Die-cut and lathe-cut. Clean room production for medical and food-contact applications.
Standard sizes, tolerances & manufacturing
Precision & tooling: Capable of holding tolerances as tight as ±.001" on critical dimensions when required, beyond the ±0.010" to ±0.015" standard. Short- and long-run capabilities. All parts available with pressure-sensitive adhesive (PSA) on one or two sides.
Clean room: Cannon Gasket offers clean-environment stamping for medical, FDA, electronic, and scientific applications where a controlled level of particulate is required, with capabilities to meet ISO Class 10,000.
Stocking agreements: Blanket orders, VMI (vendor-managed inventory), JIT (just-in-time), and Kanban replenishment programs.
Pad printing: Pad print your part number, identification marking, or company name in a range of ink colors. Marking per customer specifications or MIL-STD-130.
Packaging: Parts are bagged and tagged in specified quantities and labeled with P/N or any required information. Capability to meet specific packaging and labeling requirements.
Standard Screw Size Rubber Washers
| Screw Size | Outside Diameter | Inside Diameter | Thickness |
|---|---|---|---|
| #6 Standard | 0.250" | 0.120" | 0.015" – 0.250" |
| #6 Option | 0.375" | 0.120" | 0.015" – 0.250" |
| #8 Standard | 0.312" | 0.150" | 0.015" – 0.250" |
| #8 Option | 0.438" | 0.150" | 0.015" – 0.250" |
| #10 Standard | 0.375" | 0.170" | 0.015" – 0.250" |
| #10 Option | 0.500" | 0.170" | 0.015" – 0.250" |
| #12 Standard | 0.437" | 0.195" | 0.015" – 0.250" |
| #12 Option | 0.562" | 0.195" | 0.015" – 0.250" |
| #14 Standard | 0.500" | 0.230" | 0.015" – 0.250" |
| #14 Option | 0.625" | 0.230" | 0.015" – 0.250" |
| 5/16" Standard | 0.562" | 0.290" | 0.015" – 0.250" |
| 5/16" Option | 0.688" | 0.290" | 0.015" – 0.250" |
| 3/8" Standard | 0.625" | 0.355" | 0.015" – 0.250" |
| 3/8" Option | 0.812" | 0.355" | 0.015" – 0.250" |
| 1/2" Standard | 1.062" | 0.490" | 0.015" – 0.250" |
| 3/4" Standard | 1.500" | 0.740" | 0.015" – 0.250" |
Standard RMA Thicknesses and Tolerances for Elastomers
| Nominal Thickness | Tolerance |
|---|---|
| 0.015" | ±0.010" |
| 0.031" | ±0.012" |
| 0.062" | ±0.016" |
| 0.093" | ±0.016" |
| 0.125" | ±0.020" |
| 0.187" | ±0.031" |
| 0.250" | ±0.031" |
| 0.375" | ±0.047" |
| 0.500" | ±0.047" |
Standard references shown. Cannon Gasket also cuts custom outside diameters, inside diameters, and thicknesses to your drawing. Send your specifications for a quote.
